LangGraph Explained: Building Smarter, More Reliable AI Agents

Imagine you are building an AI agent for your product, say, a travel planner, a customer support bot, or a sales assistant. At first, you give the AI very little freedom. It simply passes each request to the right service without making its own decisions. It is reliable but also rigid, like a train on fixed tracks, it always follows the same route, with no surprises along the way.

In this simple control flow, often called a “Chain”, reliability comes from its simplicity because there is no room for surprises.

But agents are different. They give LLM the freedom to decide the next steps, which is powerful but also risky. The more the LLM defines the control flow, the more unpredictable and non-deterministic it becomes. It might cancel bookings when it shouldn’t, retries endlessly on API failures, or forgets what the user asked yesterday. The agent is more intelligent but your product is less reliable.

This is the fundamental trade-off in AI agent design

More autonomy = less predictability

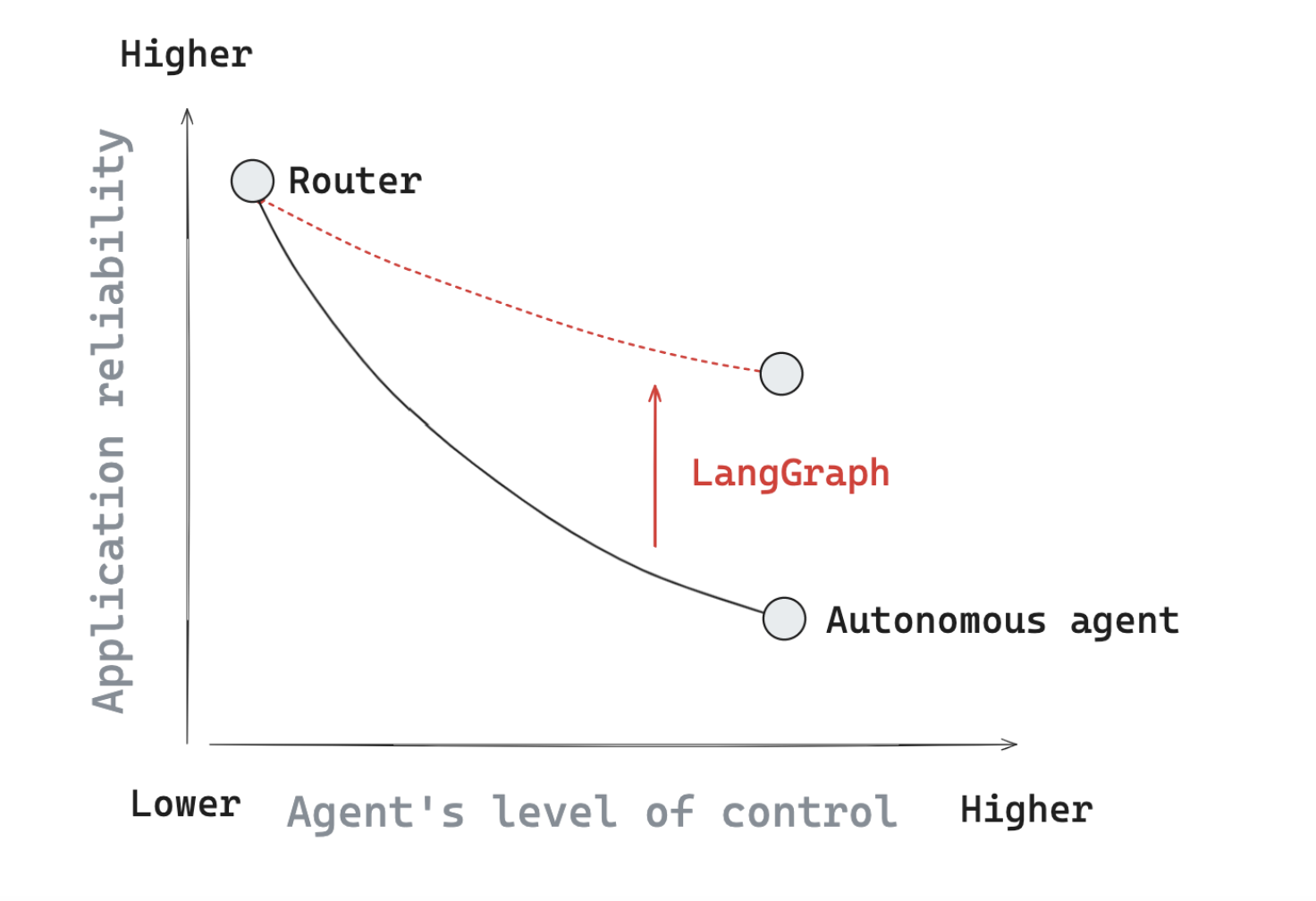

The diagram above shows that curve. On the left, we have routers (rule-based decision points that simply direct the flow based on predefined logic) which is reliable but inflexible. On the right, autonomous agents which is powerful but chaotic.

LangGraph exists to bend this curve. It lets you give agents more control without sacrificing reliability by structuring their decision-making, preserving state, and recovering gracefully when things go wrong.

Building Blocks

LangGraph has 3 main components: State, Nodes, and Edges.

• State: Stores the current snapshot of the application including the information on the structure of the graph along with the reducer function that defines how to apply updates to the graph.
• Node: Functions which define what the agent can do. It takes the current State as the input, performs its action and returns an updated State.
• Edges: Functions that decides which Node to run next based on the current State. It can follow fixed paths or branch conditionally.

As the documentation says:

nodes do the work. edges tell what to do next.

A Simple LangGraph Example

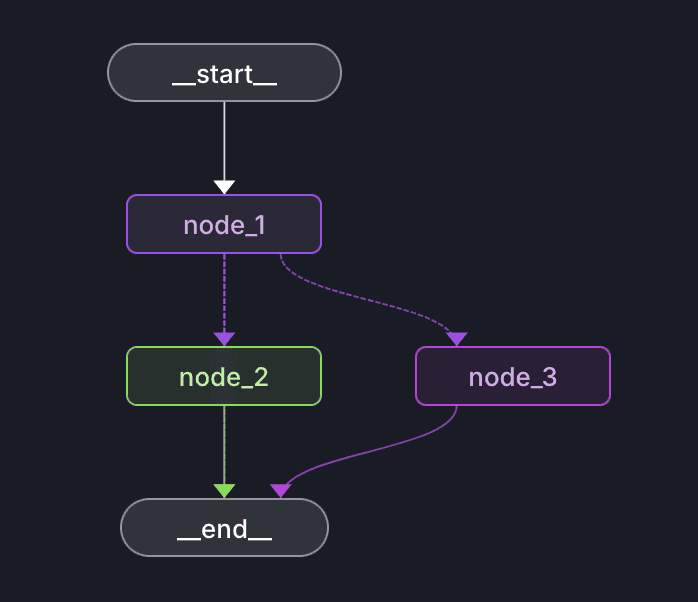

Let's explore an example: a simple graph where an agent dynamically determines its "mood" based on a randomly generated number.

// agent.mts
import { StateGraph, START, END, Annotation } from "@langchain/langgraph";

// Nodes
function node_1(state) {
  return { mood: state.mood + " I am" };
}

function node_2(state) {
  return { mood: state.mood + " happy!" };
}

function node_3(state) {
  return { mood: state.mood + " sad!" };
}

function decide_mood(state) {
  if (Math.random() < 0.5) {
    return "node_2";
  }

  return "node_3";
}

const State = Annotation.Root({
  mood: Annotation<string>,
});

// Build graph
const builder = new StateGraph(State)
  .addNode("node_1", node_1)
  .addNode("node_2", node_2)
  .addNode("node_3", node_3)
  .addEdge(START, "node_1")
  .addConditionalEdges("node_1", decide_mood)
  .addEdge("node_2", END)
  .addEdge("node_3", END);

const agent = builder.compile();

const finalState = await agent.invoke({ mood: "" });
console.log("Final State:", finalState); // Final State: { mood: ' I am happy!' }

How LangGraph Improves Reliability

Now we know the three components of LangGraph — State, Nodes, and Edges. But these components alone don’t guarantee a solid structure. Reliability is achieved through how these pieces work together, especially when workflows become complex. LangGraph does this through these key mechanisms

• Persistence: LangGraph remembers what has happened before through two types of memory

  • Short-term (thread-scoped) memory: Keeps track of information within a single interaction or workflow. This is managed using State and checkpointer.
  • Long-term memory: Stores important details across multiple interactions or sessions. This is handled using a Store.

• Time Travel: LangGraph has the ability to "travel back in time" and analyze the decisions taken by the agent. This makes debugging and refining your agent much easier compared to traditional approaches.

  • Replaying: With the help of a checkpointer, LangGraph can replay an agent’s previous actions step by step. This is useful when you want to understand why the agent took a specific action or to reproduce a past conversation.
  • Forking: Sometimes, you want to explore what would have happened if the agent made a different choice. Forking lets you go back to a specific point in the graph and branch off, testing alternative paths without losing the original one.

• Human in the loop: Not every decision should be left to AI. LangGraph allows for human intervention at critical steps. For example, confirming a refund before it's processed or verifying a sensitive email before it's sent. This prevents costly mistakes while still letting the agent handle most of the work.

• Streaming: Instead of waiting for every step to finish before responding, LangGraph supports streaming partial updates. The agent can start sharing progress like showing early results while the backend is still doing the heavy lifting, making the UX better.

• Parallelization: LangGraph lets your agent run multiple tasks at once instead of waiting step by step. It can fetch data from different APIs, search multiple knowledge bases, or run separate reasoning tasks in parallel, then aggregate the results into a single state.

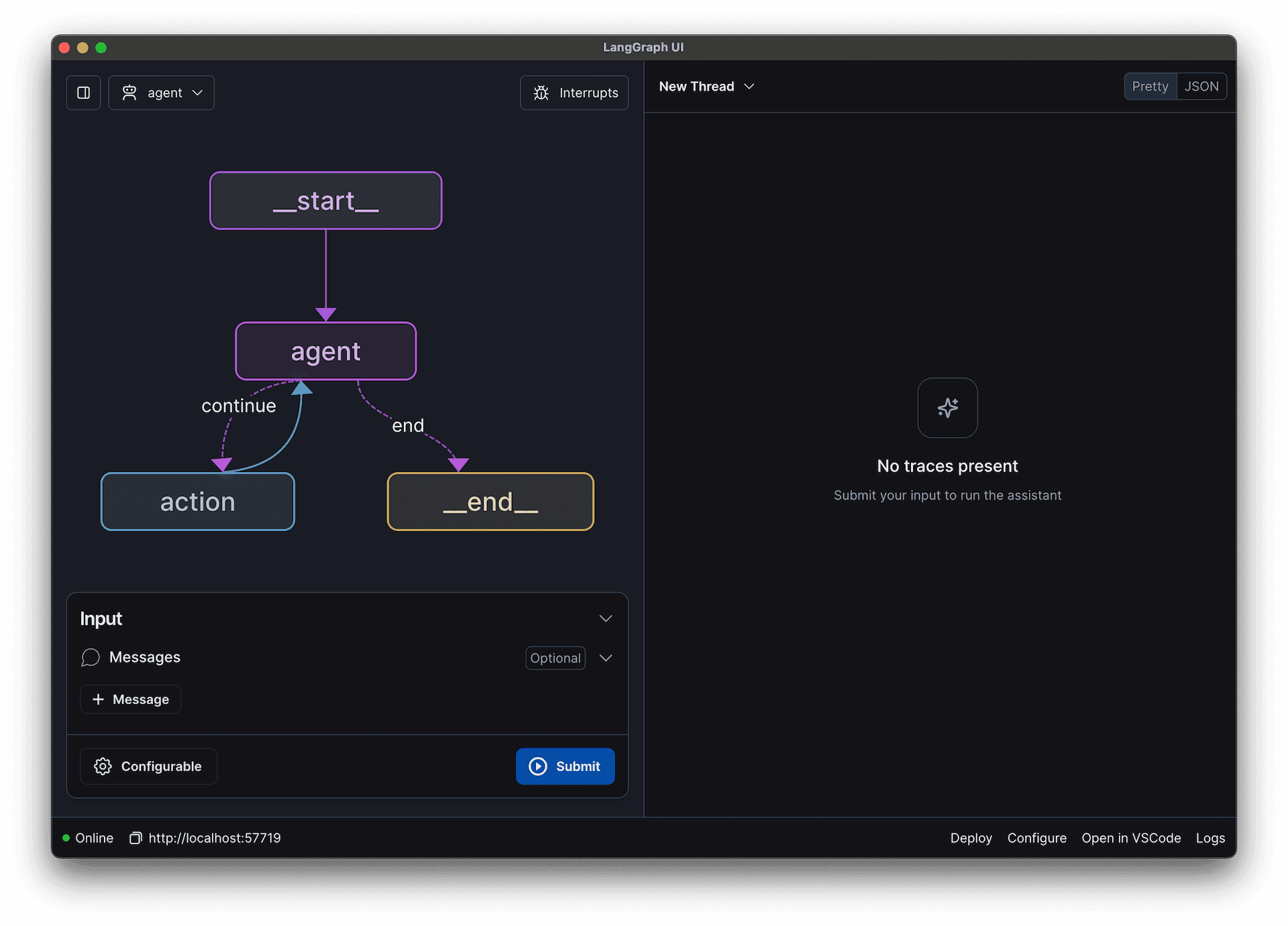

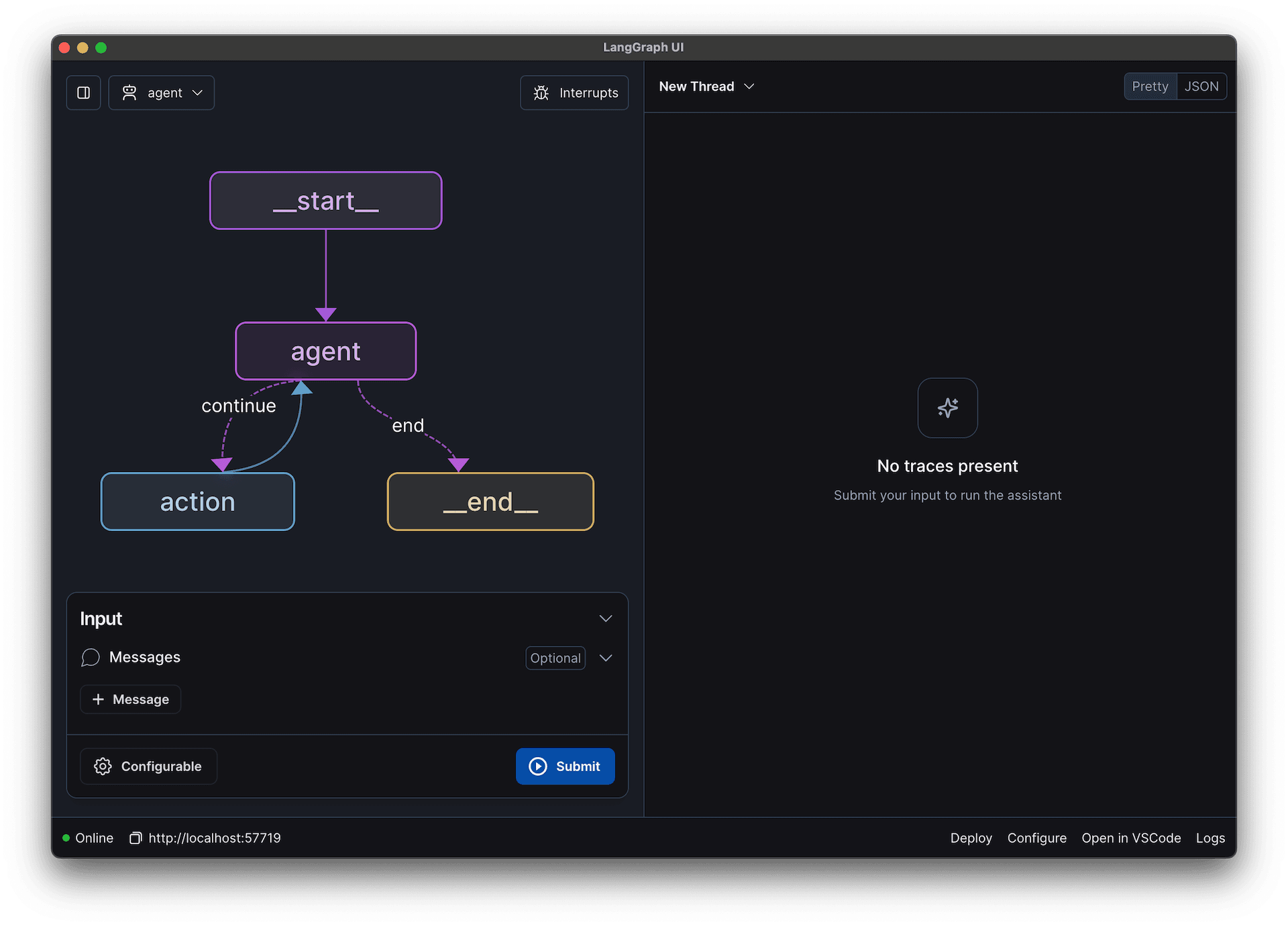

• LangGraph Studio: LangGraph provides LangGraph Studio, a specialized IDE for visualization and debugging of LangGraph applications. This tool offers a visual interface to monitor your agent's execution flow, inspect state changes, and debug complex workflows in real-time, making development and troubleshooting significantly easier.

Building reliable AI agents isn't just about giving them more power. It is about giving them the right structure. With State, Nodes, and Edges as its foundation, and features like Human in the Loop, Memory, and Streaming, LangGraph helps you build agents that don't forget, don't fall apart, and don't leave users frustrated.
